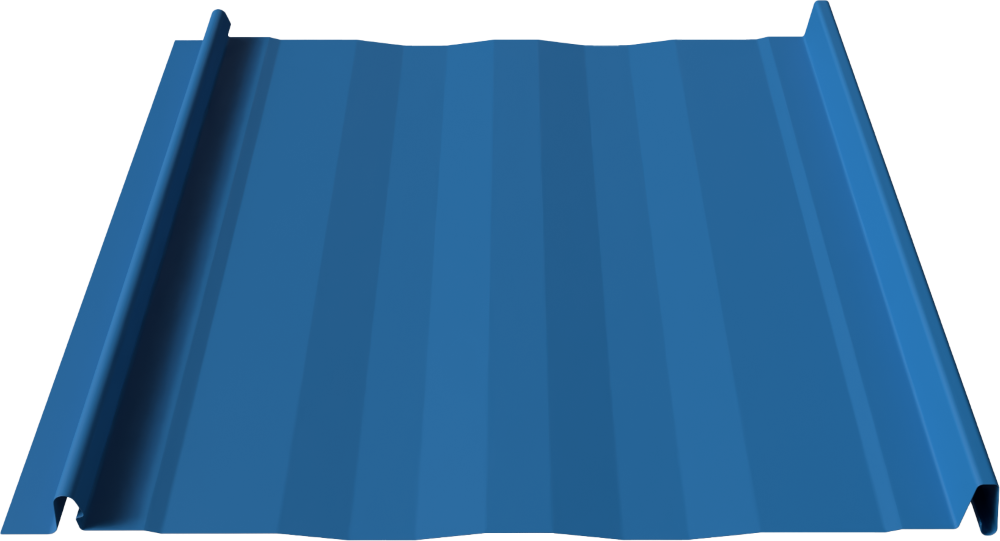

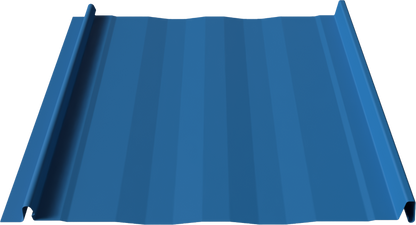

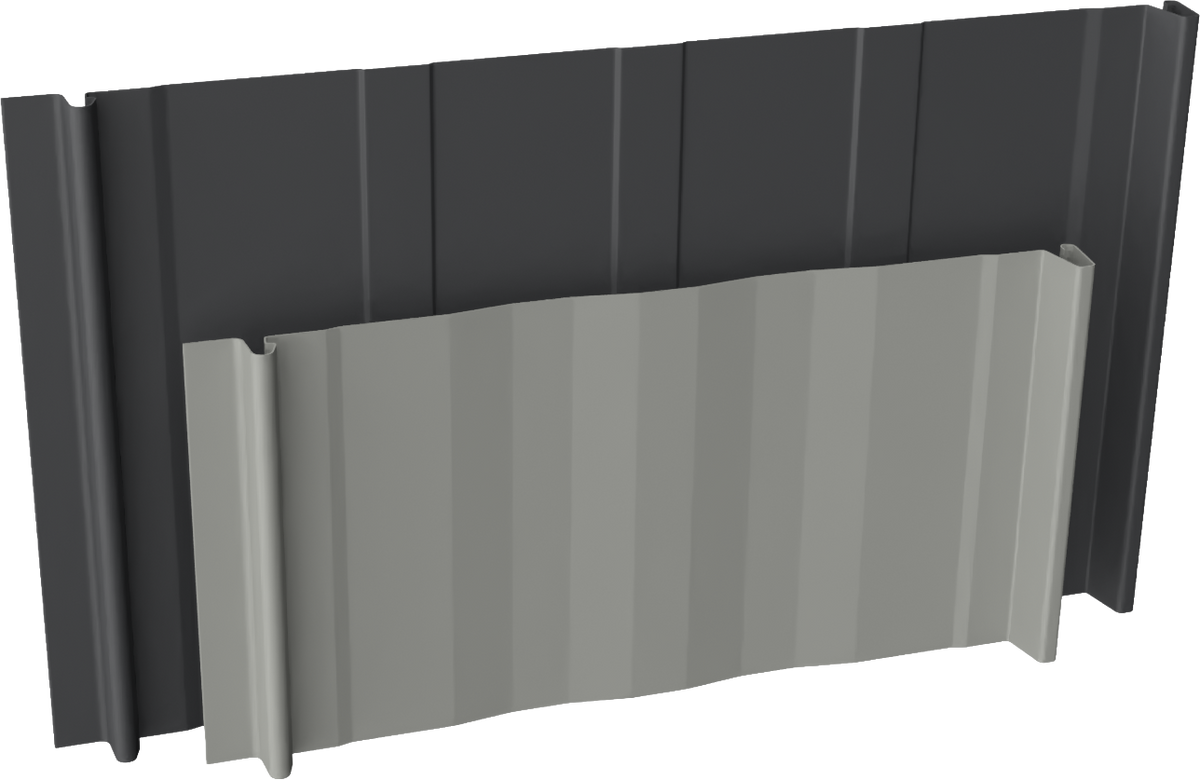

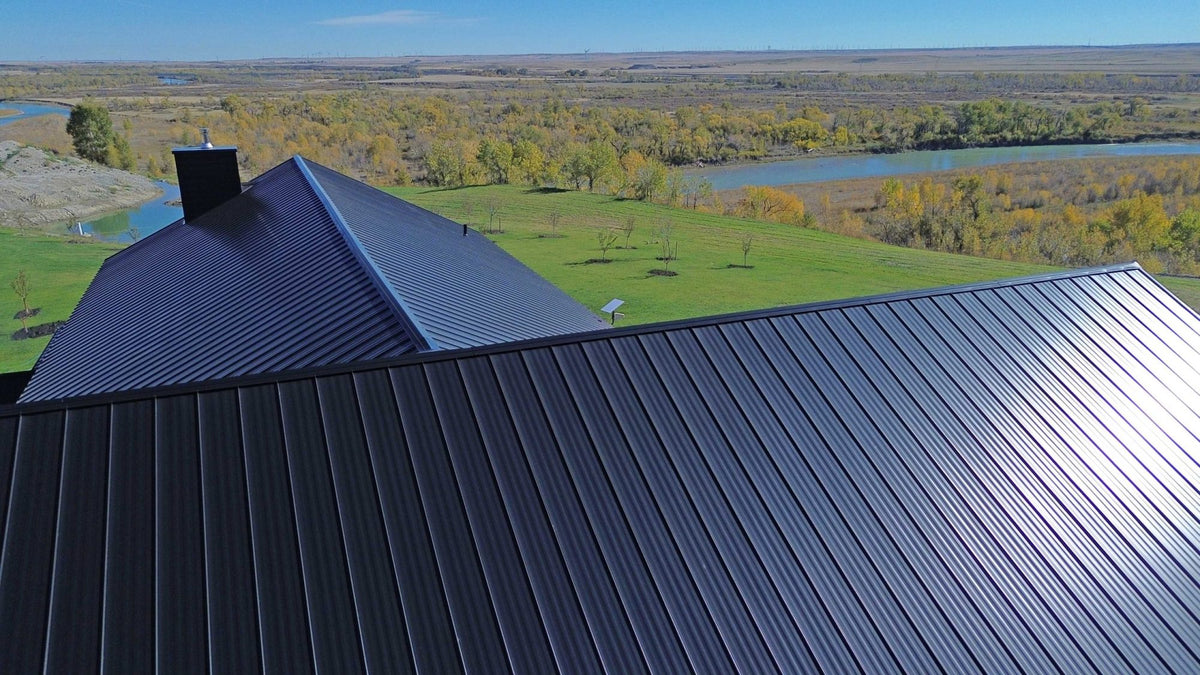

FormaLoc 16

FormaLoc 16 is the wider version of our standing seam system, covering more roof per panel with the same hidden-fastener performance and clean lines. It is built for Alberta conditions – high wind, heavy snow and big temperature swings.

Custom Made to Order – made to your project lengths by Calgary-based Pillars Metal. Starting at $4.19 / linear ft.

FormaLoc 16 features

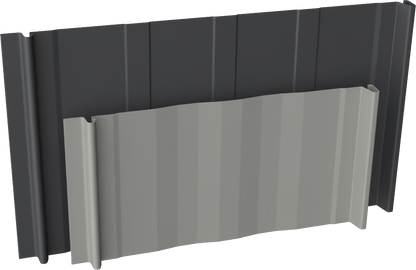

• Hidden-fastener standing seam with 16" coverage
• 1 linear ft covers about 1.33 sq ft
• Use 24ga or 26ga for roofs (29ga is not recommended for 16")
• Slopes greater than 3/12 recommended, over solid 5/8" plywood minimum

Specifications

• Available gauges: 29ga gr80, 26ga gr80 and 24ga gr40
• Available finishes: Plain and Colour

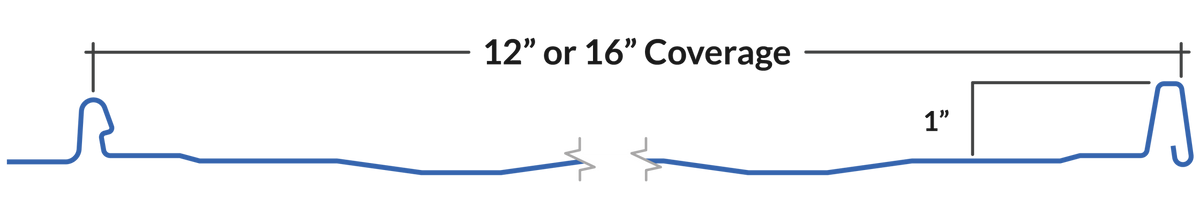

• Coverage: 16" coverage (1 linear ft covers approx. 1.33 sq ft)
• Applications: standing seam roofing and wall cladding
• Best for: residential and light commercial standing seam roofs and wall cladding

Pricing, lead time and delivery

$500 minimum custom material order. Estimated lead time: 2–3 weeks. Final pricing depends on profile, gauge, colour/finish, panel length, quantity, fabrication, trims, accessories, freight/delivery and project requirements. We deliver across Alberta; freight is quoted separately and GST is added at quoting.

FormaLoc 16 FAQ

How much does FormaLoc 16 cost?

FormaLoc 16 starts at $4.19 / linear ft and goes up to $8.15 / linear ft depending on gauge and finish. For example, 8 panels at 17'6" is 140 linear ft; at $4.19 per linear ft that is $586.60 in material, before GST and delivery.

How many linear feet of FormaLoc 16 do I need?

Each linear foot covers about 1.33 sq ft, so 1,000 sq ft of wall or roof needs roughly 752 linear ft before waste, overlaps and openings. Send us your dimensions or plans and we'll calculate exact quantities for you.

How do I order FormaLoc 16?

Use the Request a Quote form with your profile, gauge, colour, dimensions and postal code. We'll confirm quantities, trims, pricing and delivery – usually within one business day.

Request a Quote for final project pricing. Not sure how much material you need? Send us your dimensions, plans or photos and we'll calculate it for you.
