I/9 Panel

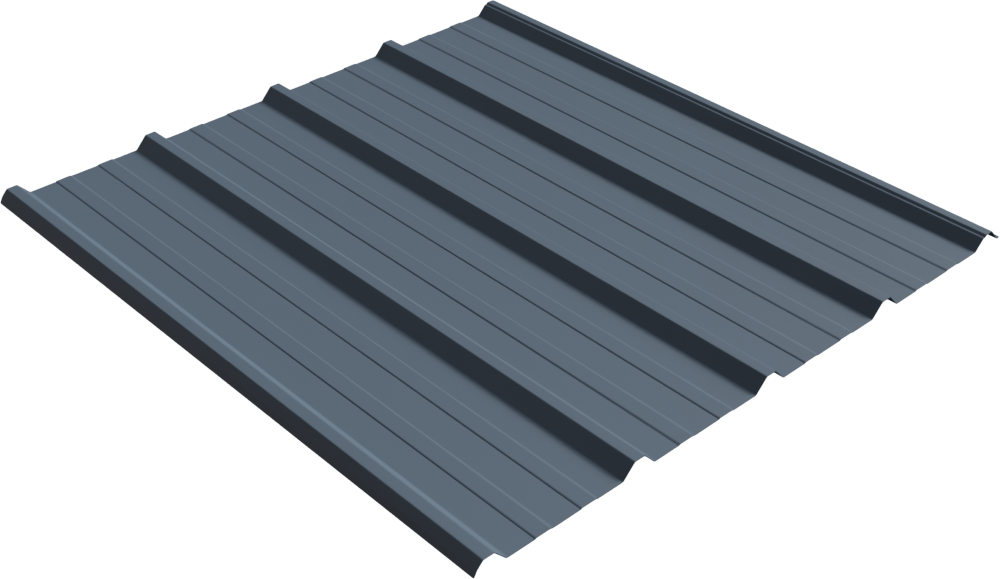

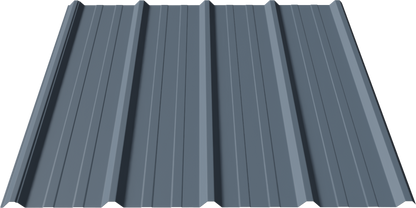

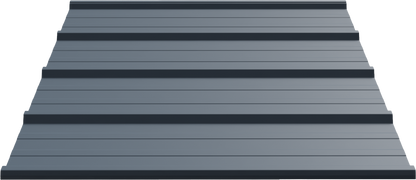

I/9 shares the proven 3/4" rib height and 9" rib spacing of the FC36, but uses a flat-top rib for a smoother, slightly more modern look. It works on both roofs and walls for homes, shops and commercial buildings.

Custom Made to Order – made to your project lengths by Calgary-based Pillars Metal. Starting at $6.29 / linear ft.

I/9 Panel features

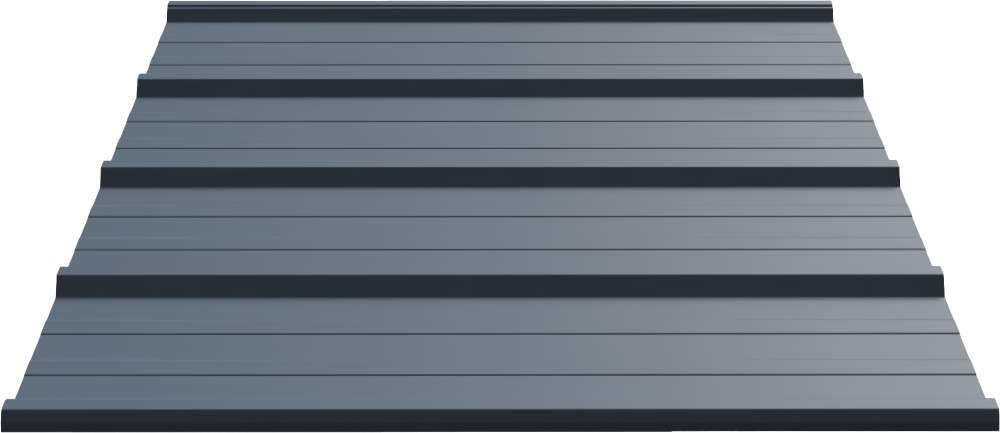

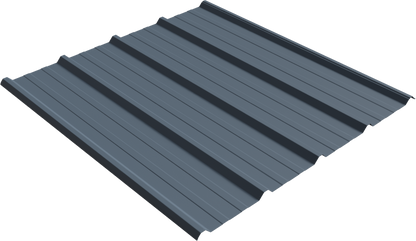

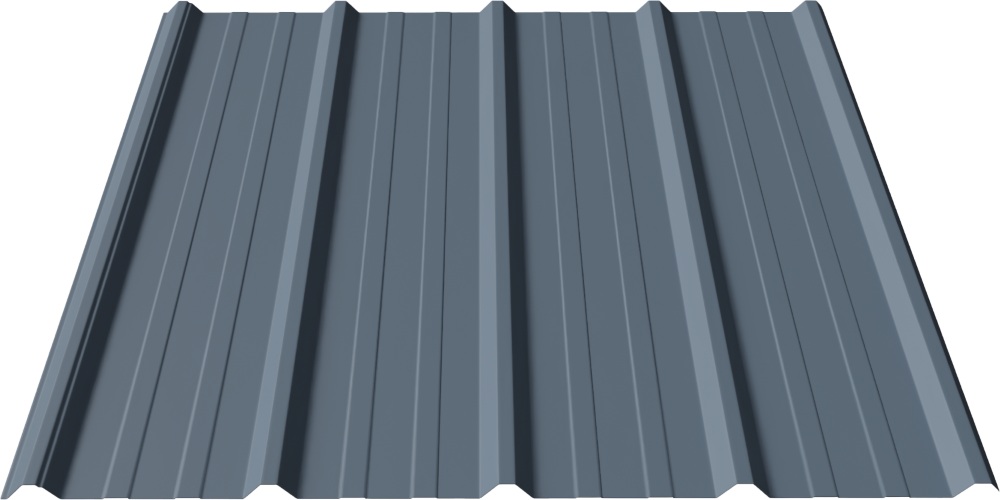

• 3/4" flat-top ribs on 9" centres for a clean, modern profile
• 36" coverage – about 3 sq ft per linear ft
• Roof slopes down to 2.5/12 with overlap sealant (confirm with building code and underlayment)
• 29ga and 26ga in Algalume, Galvanized, liner white and 40-year colours

Specifications

• Available gauges: 29ga gr80 and 26ga gr80
• Available finishes: AZ50 (Algalume), G90 (Galvanized), Bright White Liner, Colour 40yr and WhWh or BrWh Liner
• Coverage: 36" coverage (1 linear ft covers approx. 3 sq ft)
• Applications: roofing and wall cladding
• Best for: residential roofing, shops, garages and commercial walls

Pricing, lead time and delivery

$500 minimum custom material order. Estimated lead time: 2–3 weeks. Final pricing depends on profile, gauge, colour/finish, panel length, quantity, fabrication, trims, accessories, freight/delivery and project requirements. We deliver across Alberta; freight is quoted separately and GST is added at quoting.

I/9 Panel FAQ

How much does I/9 Panel cost?

I/9 Panel starts at $6.29 / linear ft and goes up to $9.02 / linear ft depending on gauge and finish. For example, 8 panels at 17'6" is 140 linear ft; at $6.29 per linear ft that is $880.60 in material, before GST and delivery.

How many linear feet of I/9 Panel do I need?

Each linear foot covers about 3 sq ft, so 1,000 sq ft of wall or roof needs roughly 334 linear ft before waste, overlaps and openings. Send us your dimensions or plans and we'll calculate exact quantities for you.

How do I order I/9 Panel?

Use the Request a Quote form with your profile, gauge, colour, dimensions and postal code. We'll confirm quantities, trims, pricing and delivery – usually within one business day.

Request a Quote for final project pricing. Not sure how much material you need? Send us your dimensions, plans or photos and we'll calculate it for you.
