II/6 Panel

Skip to product information
1 of 8

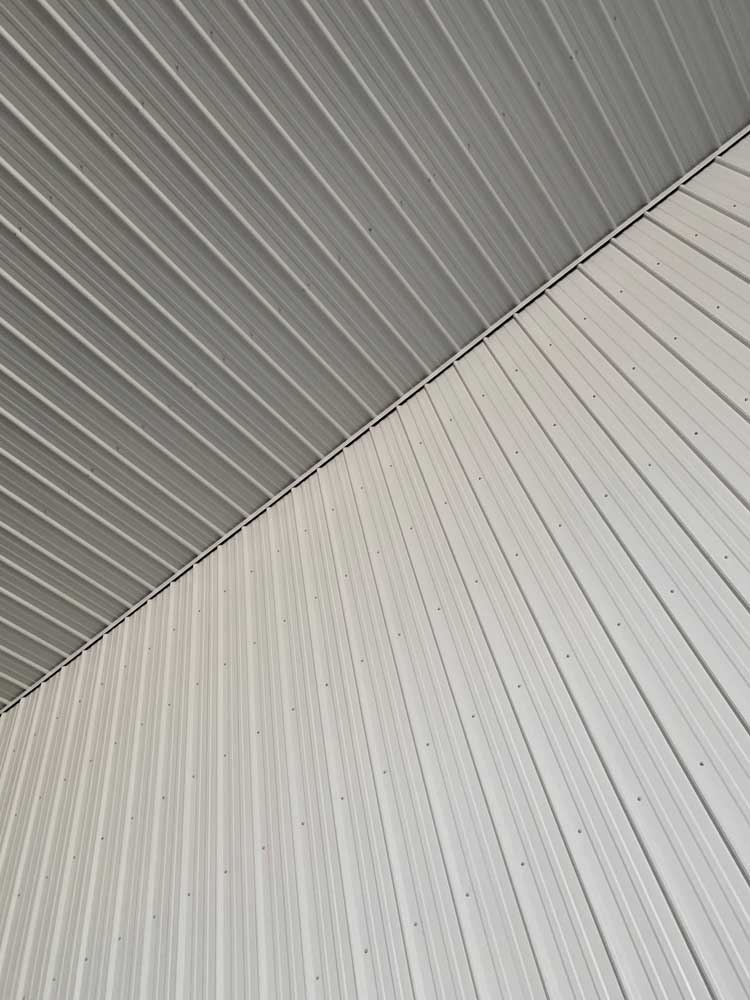

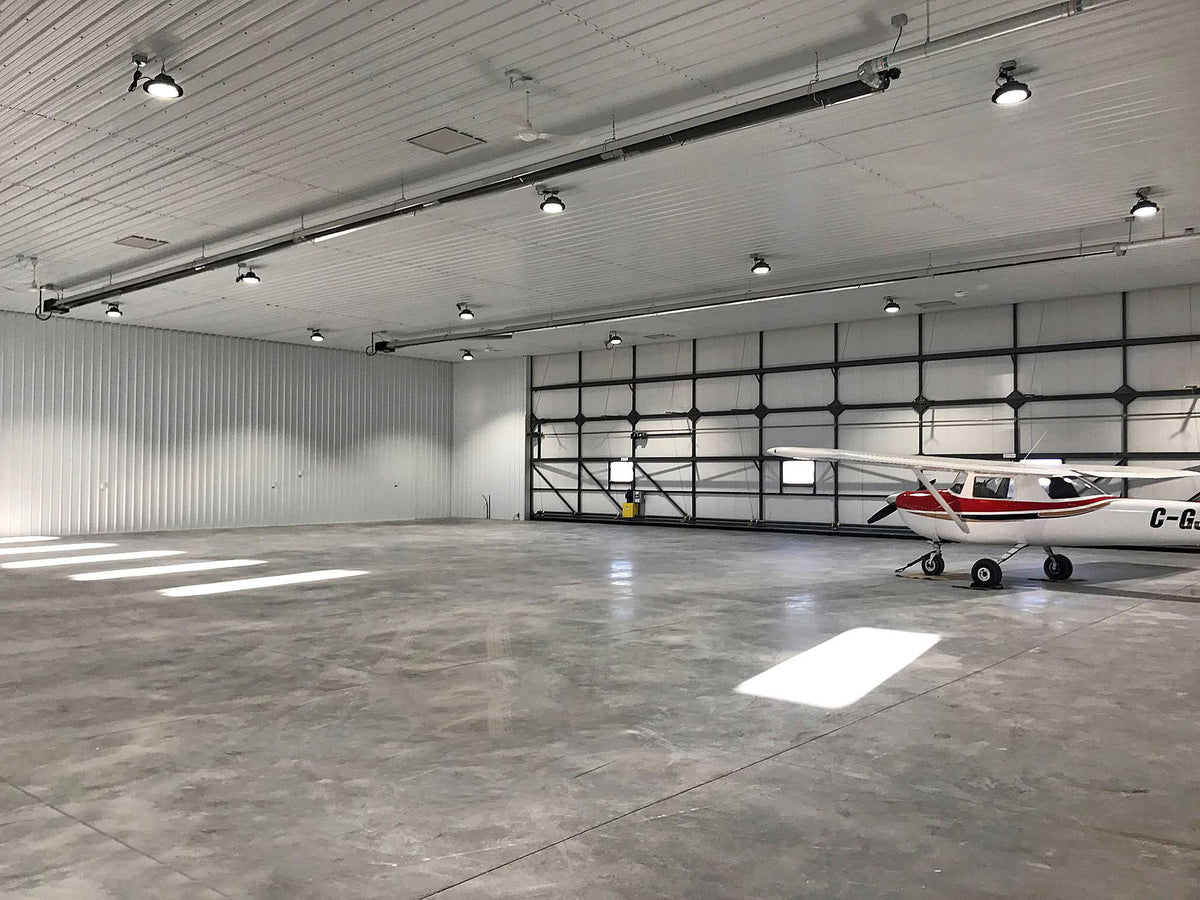

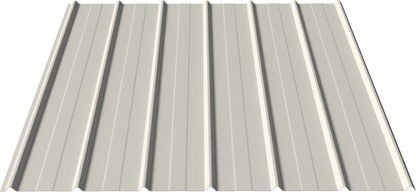

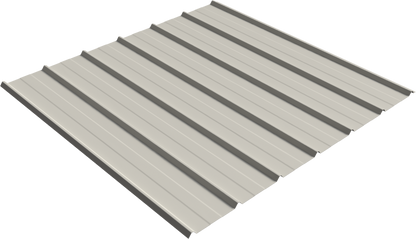

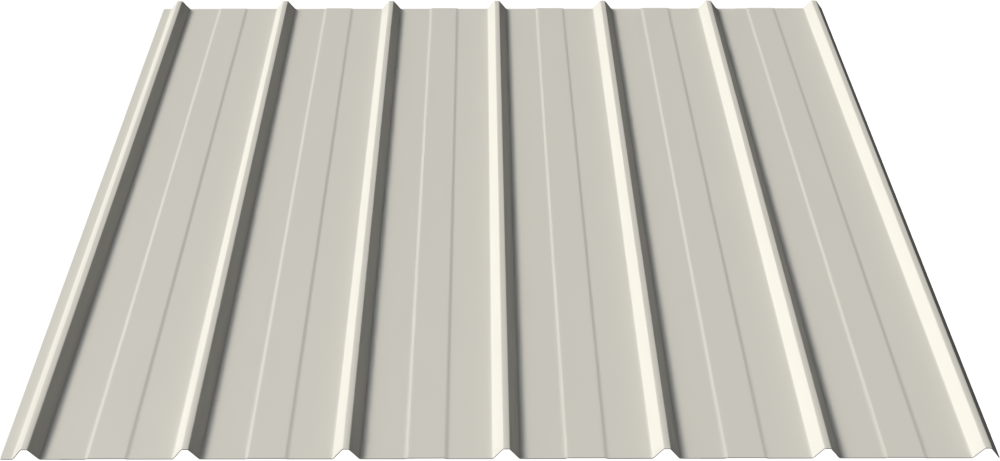

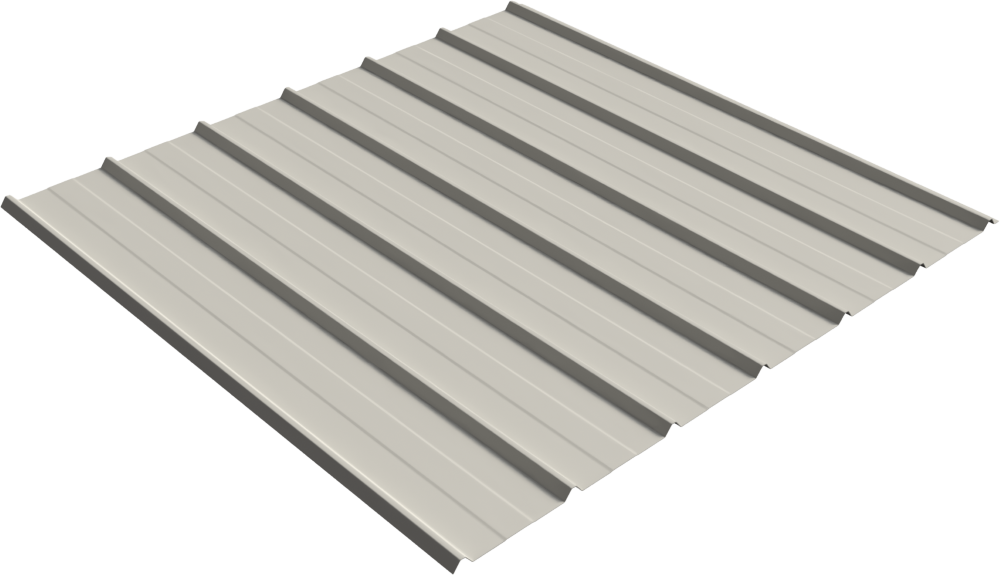

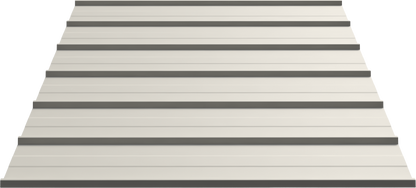

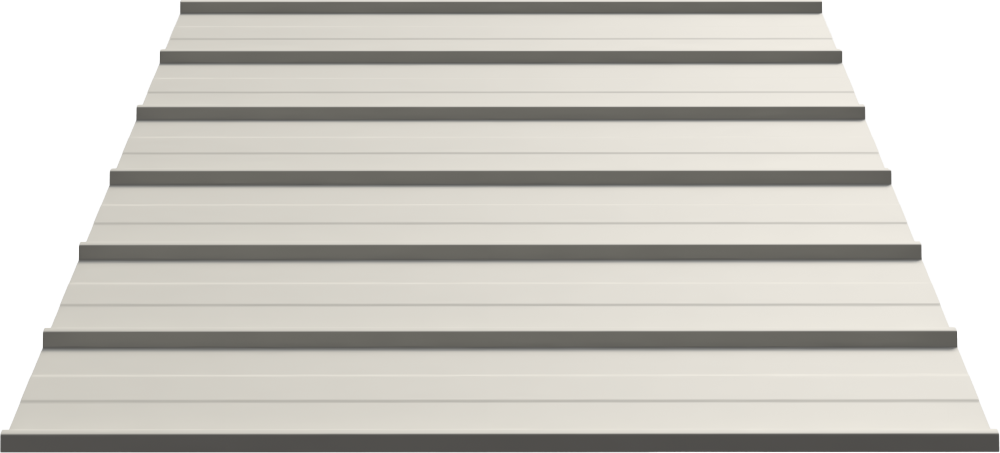

The II/6 panel has a low 1/2" rib on a 6" span, giving a subtler, cleaner look than taller exposed-fastener panels. That makes it the go-to profile for shop and barn interior liners, ceilings, soffit and fascia, while still standing up to exterior wall use.

Custom Made to Order – made to your project lengths by Calgary-based Pillars Metal. Starting at $6.29 / linear ft.

II/6 Panel features

  • Low 1/2" rib height on a 6" span for a clean, understated look
  • 36" coverage – 1 linear ft covers about 3 sq ft

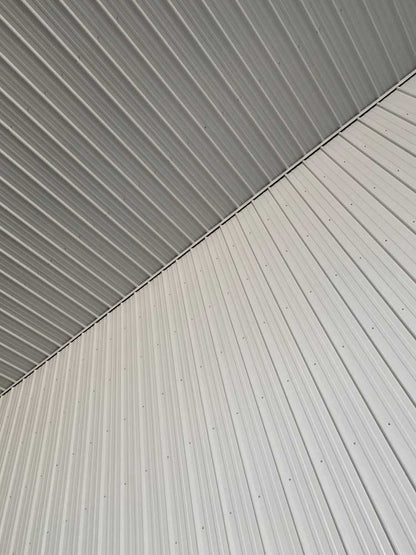

  • Bright White and White/White liner finishes for bright, washable interiors
  • Can be ordered vented for soffit applications

Specifications

  • Available gauges: 29ga gr80 and 26ga gr80
  • Available finishes: AZ50 (Algalume), G90 (Galvanized), Bright White Liner, Colour 40yr and WhWh or BrWh Liner
  • Coverage: 36" coverage (1 linear ft covers approx. 3 sq ft)

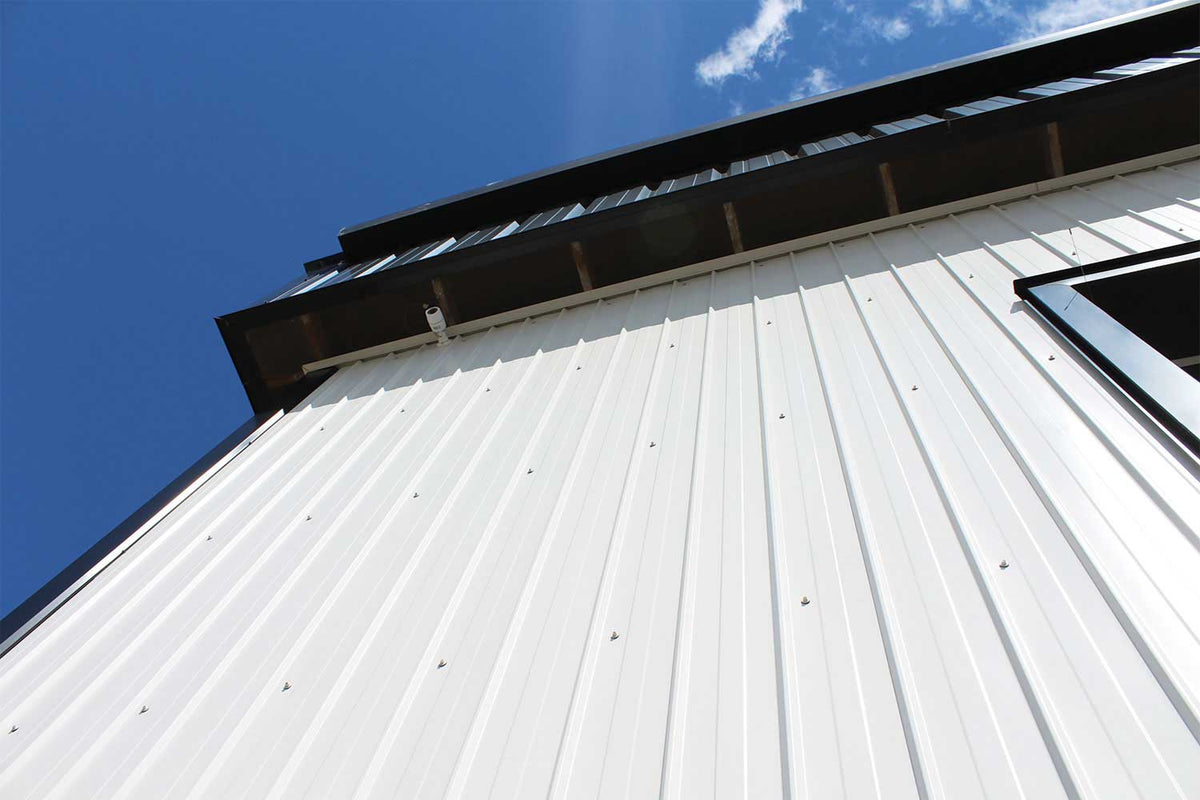

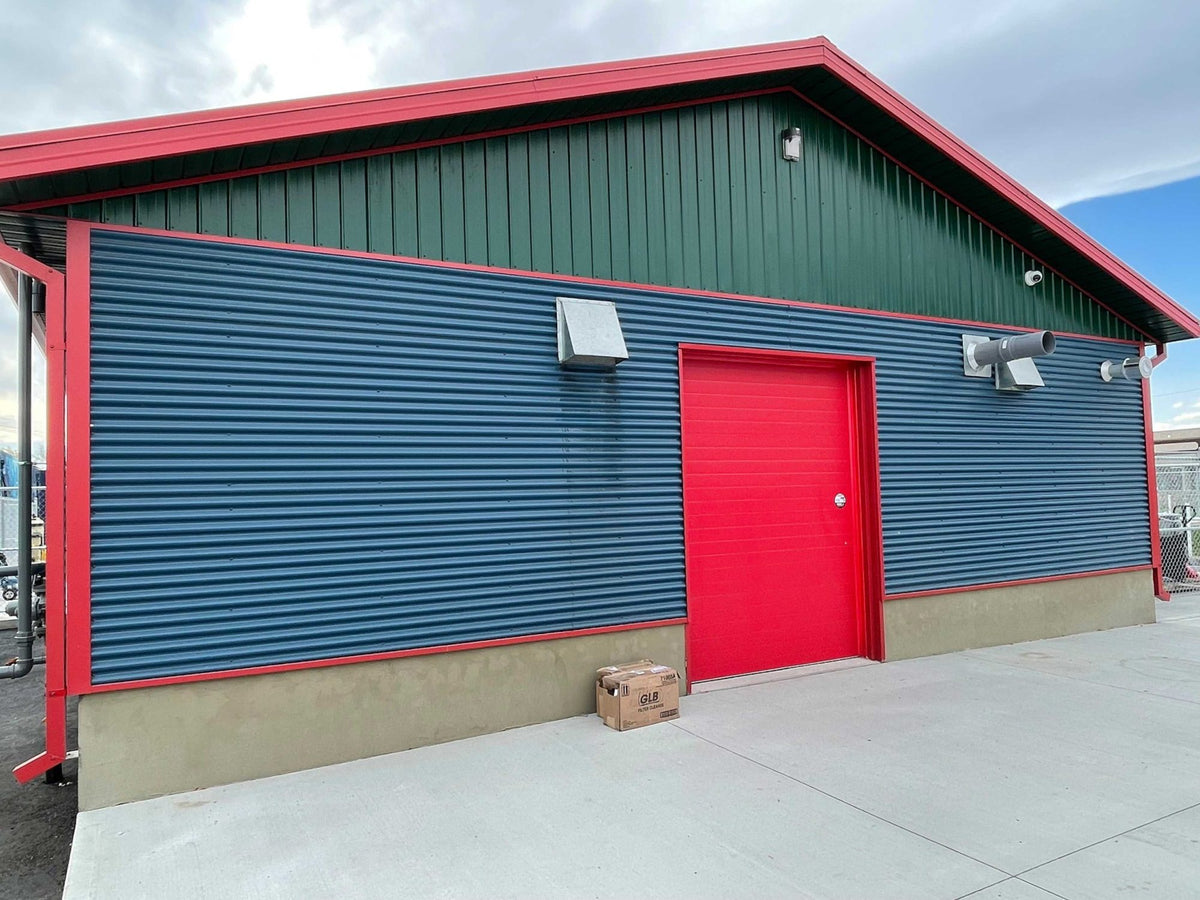

  • Applications: exterior walls, interior walls and liners, ceilings, soffit and fascia
  • Best for: shop and garage liners, agricultural buildings, ceilings, soffit and fascia

Pricing, lead time and delivery

$500 minimum custom material order. Estimated lead time: 2–3 weeks. Final pricing depends on profile, gauge, colour/finish, panel length, quantity, fabrication, trims, accessories, freight/delivery and project requirements. We deliver across Alberta; freight is quoted separately and GST is added at quoting.

II/6 Panel FAQ

How much does II/6 Panel cost?

II/6 Panel starts at $6.29 / linear ft and goes up to $9.02 / linear ft depending on gauge and finish. For example, 8 panels at 17'6" is 140 linear ft; at $6.29 per linear ft that is $880.60 in material, before GST and delivery.

How many linear feet of II/6 Panel do I need?

Each linear foot covers about 3 sq ft, so 1,000 sq ft of wall or roof needs roughly 334 linear ft before waste, overlaps and openings. Send us your dimensions or plans and we'll calculate exact quantities for you.

How do I order II/6 Panel?

Use the Request a Quote form with your profile, gauge, colour, dimensions and postal code. We'll confirm quantities, trims, pricing and delivery – usually within one business day.

Request a Quote for final project pricing. Not sure how much material you need? Send us your dimensions, plans or photos and we'll calculate it for you.

Custom Made to Order

Starting at $6.29 / linear ft

  • ✓ $500 minimum custom material order
  • ✓ Estimated lead time: 2–3 weeks
  • ✓ Delivery / freight and GST quoted separately
FinishGaugePrice / linear ft
AZ50 (Algalume) 29ga gr80 $6.29
G90 (Galvanized) 29ga gr80 $6.29
Bright White Liner 29ga gr80 $6.84
Colour 40yr 29ga gr80 $7.14
AZ50 (Algalume) 26ga gr80 $7.84
G90 (Galvanized) 26ga gr80 $8.14
WhWh or BrWh Liner 26ga gr80 $8.14
Colour 40yr 26ga gr80 $9.02

Final pricing depends on profile, gauge, colour/finish, panel length, quantity, fabrication, trims, accessories, freight/delivery and project requirements.

Request a Quote

Tell us about your project and we'll confirm pricing, quantities and availability. Not sure how much material you need? Give us your dimensions and we'll calculate it for you.

Panel quantities & lengths (optional – for an instant material estimate)

Homeowners: just give us the wall or roof dimensions and we'll work out the linear footage.

Trim, fasteners & accessories needed

Have plans, drawings or project photos? Email them to hello@pillarsmetal.com after submitting and we'll attach them to your quote.

  • Warranty icon25-Year Warranty
  • Fast turnaround iconFast Alberta Delivery
  • Guarantee iconQuality Guaranteed
View full details
  • Specifications
  • Review
material:

Steel, 29ga gr80, 26ga gr80

finish:

AZ50 (Algalume), G90 (Galvanized), Bright White Liner, Colour 40yr, WhWh or BrWh Liner

profile:

Standard Panels

application:
coverage:

1 lnft = 3 sqft

installation:
